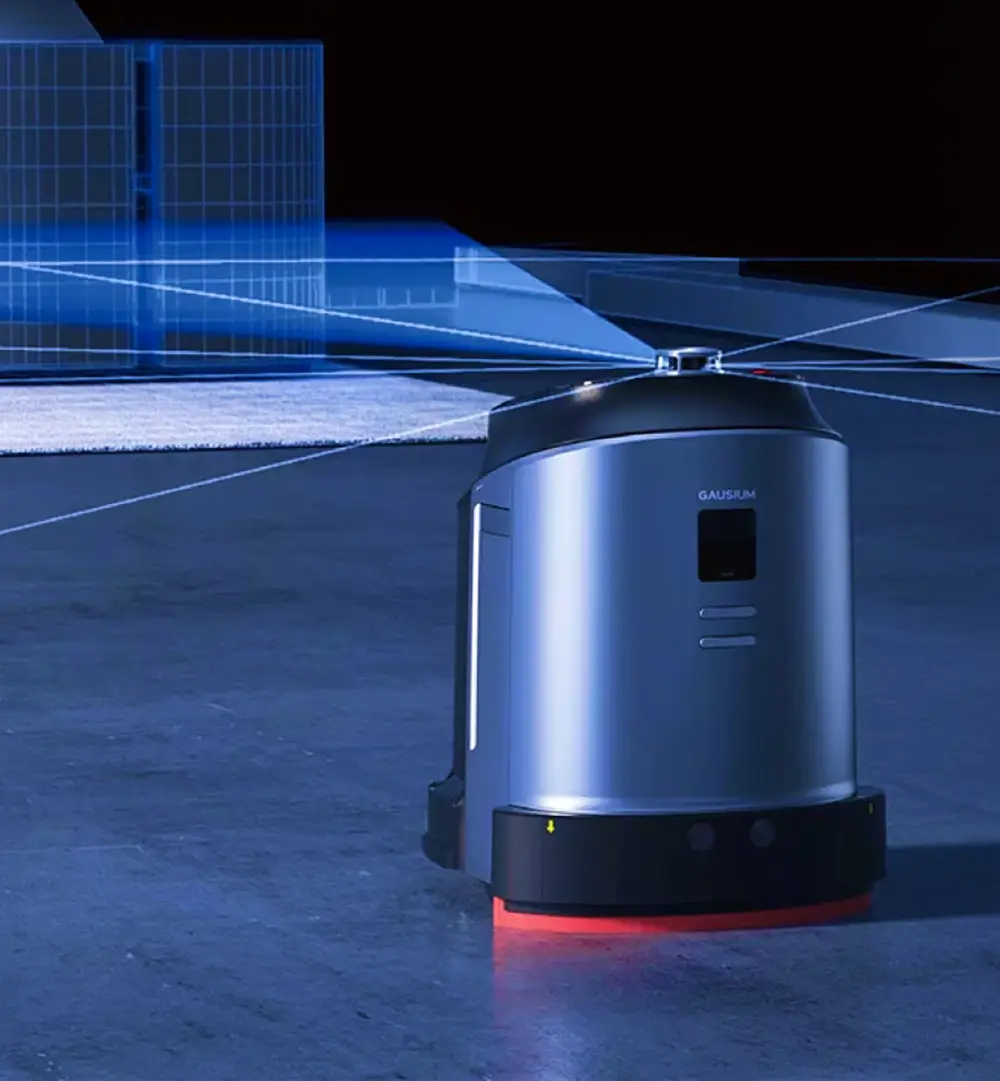

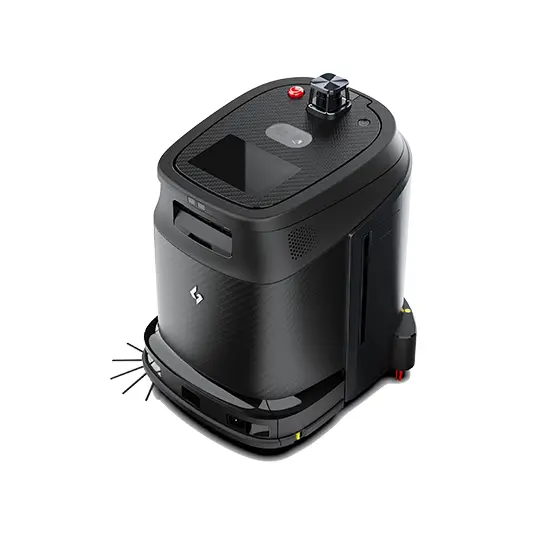

Phantas is specially designed for cleaning in small and medium sized facilities. The small size of Phantas enables superior passability and flexible movement in tight spaces such as under-table areas and narrow aisles.
modes —vacuuming, scrubbing, sweeping and dust
mopping
Floor Cleaning
docking stations extend the robot’s uptime for around-the-clock operation; the mobile app enables cleaning tasks to be activated anytime and anywhere in the map.
Download Brochure
Dimension
Length: 540 mm | 21.3 in
Width: 440 mm | 17.3 in
Height: 617 mm | 24.3 in
Net Weight: 48 kg | 106 lb
Gradeability: 8°
Max. Cleaning Speed: 0.8 m/s1.8 mph
Min. Passable Width: 600 mm(550 mm*) | 23.6 in(21.7 in*)
Min. Passable Height: 650 mm | 25.6 in
Min. Turn-around Width: 750 mm(650 mm*) | 29.5 in(25.6 in*)

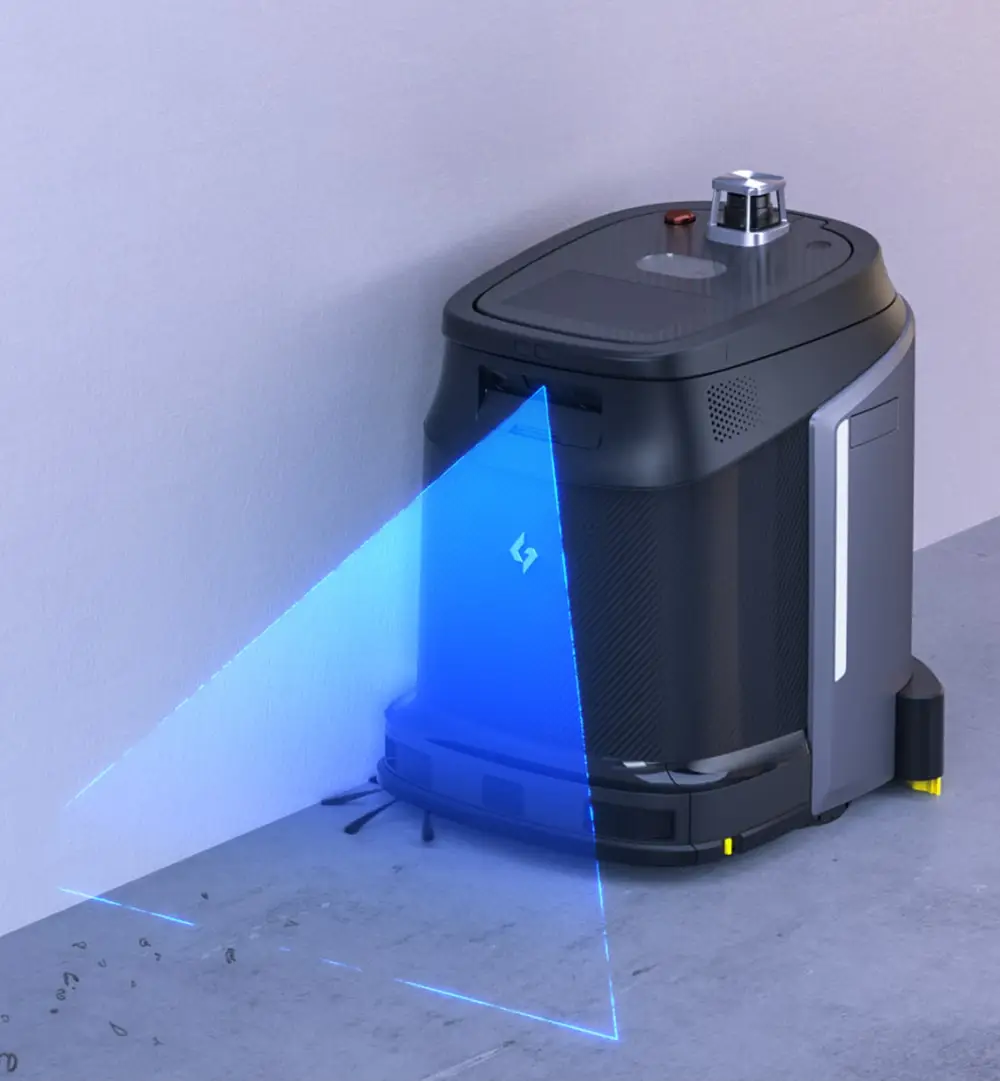

Min. Height of Detected Obstacles: 20 mm | 0.8 in
Edge Cleaning Capability: 0 mm
Standard: 2D LiDAR, 3D Depth Cameras, RGB Camera, Anti-drop, Anti-collision
Vacuuming/Sweeping Width: 410 mm | 16.2 in
Scrubbing/Dust Mopping Width: 330 mm | 13 in
Max. Cleaning Efficiency (Theoretical): Scrubbing/Dust Mopping: 950 m²/h | 10,226 ft²/h; Vacuuming/Sweeping: 1,180 m²/h | 12,701 ft²/h
Practical Cleaning Efficiency: 350-700 m²/h | 3,367-7,535 ft²/h
Clean Water/Waste Water Tank: 11.5 L/ 10.5 | L3.0 gal/ 2.8 gal
Dust Bag Capacity: 6 L | 1.6 gal(Holds 3-7 days’ dust)
Trash Can: 0.7 L | 0.2 gal
Max. Runtime: Scrubbing 4.5h, Vacuuming 4h, Sweeping 14h, Dust Mopping 10h
Charging Time: ≈2h
Sound: < 65dB
